DOK 1

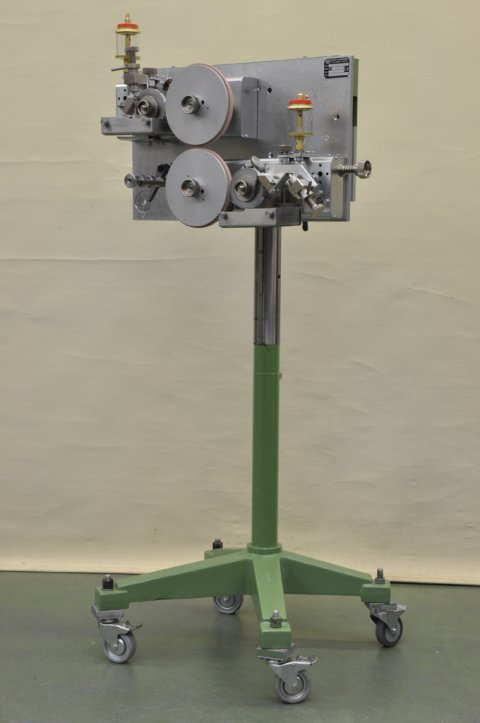

Marking system for double-sided offset printing of cable insulation with synchronized, phase-adjustable printing wheels

Double-sided indirect gravure printing
Indirect printing system
Marking speeds up to 100 m / minute
Marking cold plastic tubing and hoses as well as plastic insulated cables including products with irregular surfaces

Standard Configuration

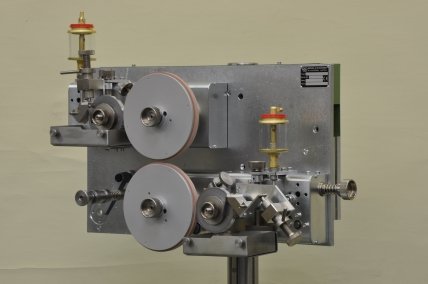

Marking unit with two marking stations.

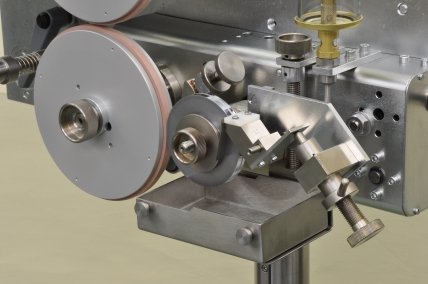

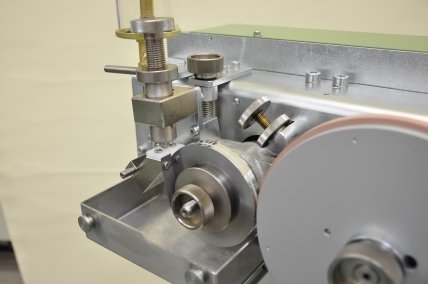

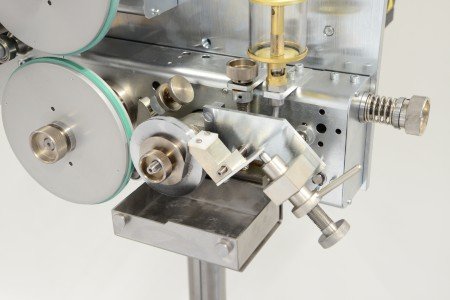

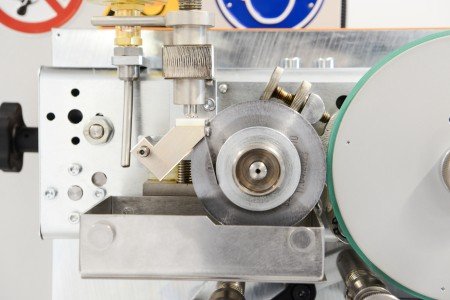

Complete marking station with ink tank, solvent feed unit, printing disc shaft, and rubber faced transfer roll.

1 set jof dedicated ink wipers and guide roller matching the specified printing disc.

Complete accessories kit without printing discs.

Features

Offset printing machine using laser engraved printing discs and rubber faced transfer rolls.

Transfer rolls synchronized and phase-adjustable during operation for ring marking or spiral striping.

Easy to set up and operate.

Printing discs and transfer rolls driven by product being marked.

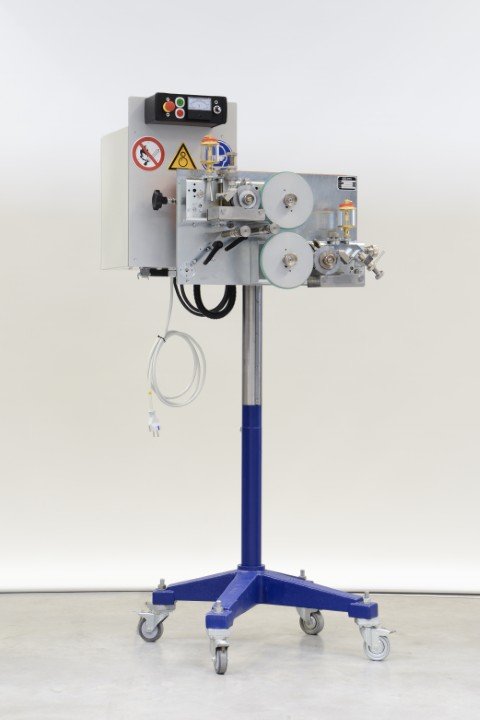

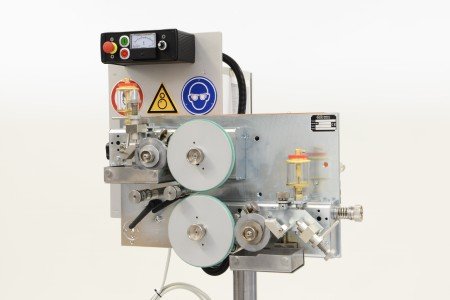

Available on request with auxiliary drive for marking delicate product or products of small diameters or with slippery surfaces..

Two DOK 1 printing heads can be coupled for two-color marking.

Versions

DOK 1 V for vertical printing.

DOK 1 H for horizontal printing.

Specifications

Max. marking speed:

approx. 100 m / minute

Product diameter:

1 mm to 10 mm

Printing disc diameter:

80 mm
