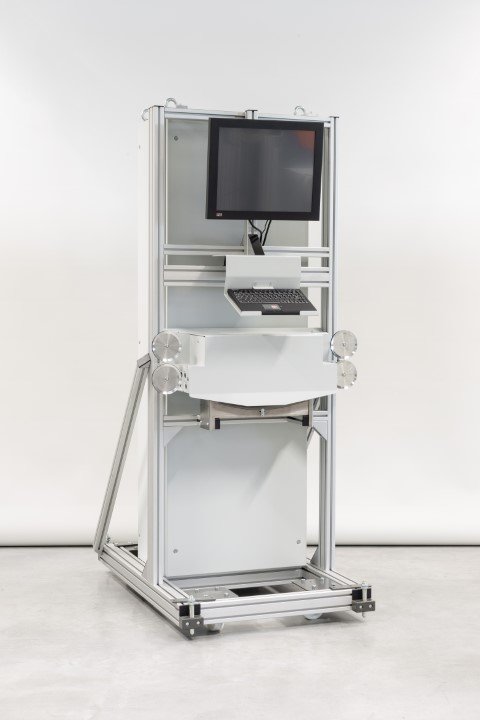

Camera Supervison System IQSO

Monitoring of product quality
Logging and alerting
Industry 4.0 ready interface – OPC-UA
High-speed optimized camera system
Top recognition speeds aligned with the respective application

Application

Intelligent camera supervision system for quality monitoring of oblong endless products by means of error logging and alerting (industry 4.0 ready interface).

Special Versions

Special versions of this supervision system are available for the following optical fiber applications:

Ring marking
Optical fiber ribbon processing
including coding
Intermittent ribbon
100% monitoring

The supervision system is also available for cable marking applications.

Features

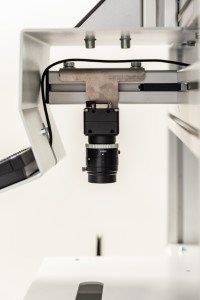

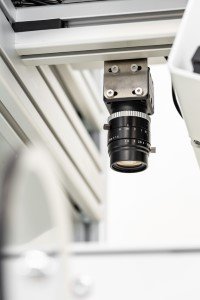

System based on CCD camera – color and b/w

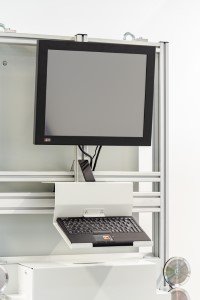

Real-time view
High speed framing

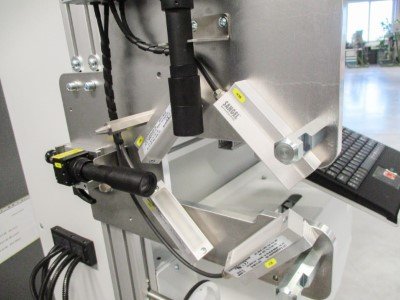

Single and multi-camera system which allows pictures of several segments
Adapted resolution
Adaptable size of picture sections
Optimally lighted for realistic pictures (what you see is what you get)
Optimized and consistent illumination (reduced reflection)
Recognition algorithm for quality control (automatic error detection) with various threshold value limits
Image capture of fibers with / without defects including data logging
Alerting if values exceed or fall below limits
History log and diagnostic values for extensive and easy evaluations
Adapted solutions for
   - ring pattern detection
   - optical centering measurement (transparent coatings)
   - text and number detection
   - color sequence (optical fiber ribbon)
   - intermittent ribbon bonding
IoT/industry 4.0 ready
OPC-UA data exchange interface
Monitoring of colored fibers / 100% monitoring of ring-marked transparent fibers
