Fiber Ribbon Production System FRP 05

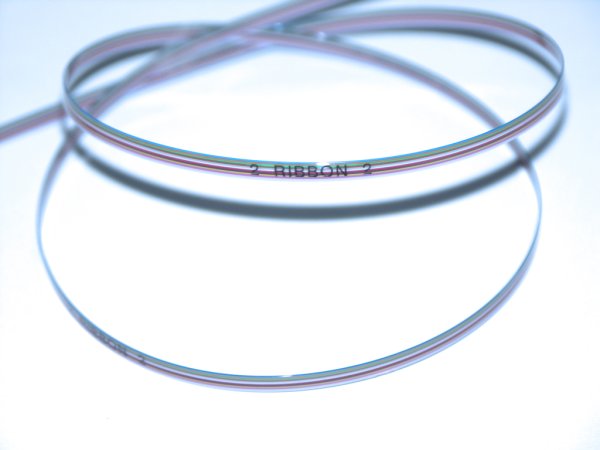

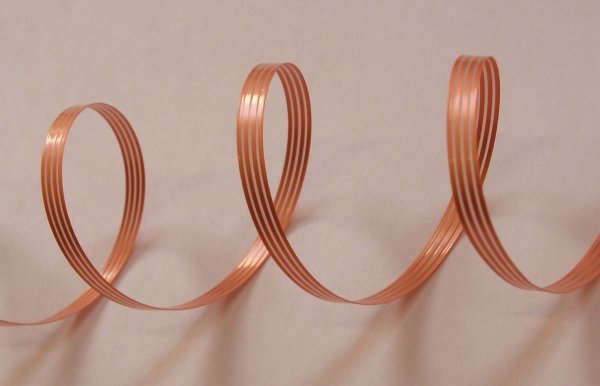

The FRP 05 equipment has been designed to produce optical fiber ribbons up to 12 (max. 24) fibers.
The operating is simple and the equipment is multi-various (various pay-off and take-up reels, fiber tension measuring, software-update, options, accessories etc.).

High speed ribbon processing
Production of multi-fiber elements (CFU)
Operational speeds up to 1000 m / min
Processing of up to 12 (max. 24) fibers
Modular design

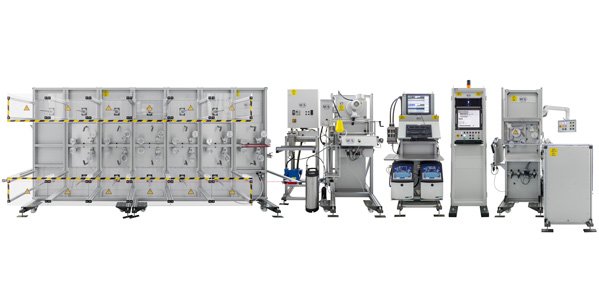

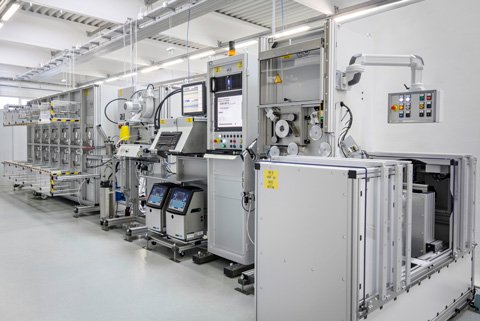

Modular Construction

The system basically comprises five main components whose frames have been designed for later installation of various options. This allows the machine to be upgraded at moderate cost as the need arises, e.g. for ring marking, higher UV curing performance, etc.

Features

Ribbon production speed up to 1000 m/min including high precision ribbon printing
Inline coloring in one single step with ribbon/CFU production
Compact fiber bundles with UV-coating multi-layer structure
Flexible ribbon with 200 µm fiber
Intelligent Camera Supervision of ribbon/printing for quality assurance

Main Components

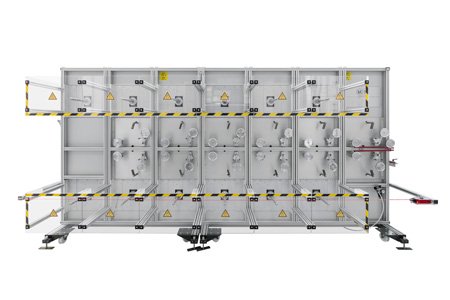

TPO 12 auto-traversing pay-off unit

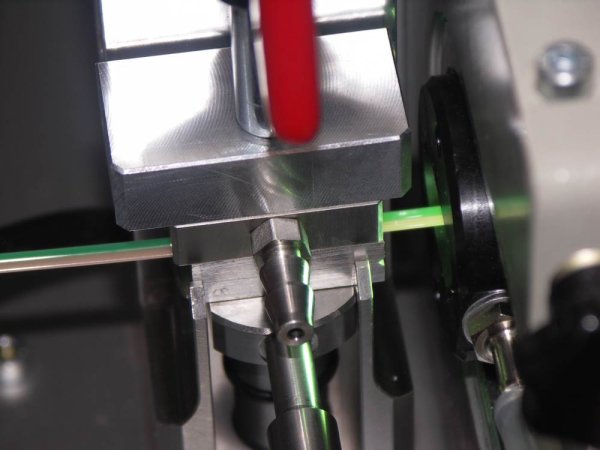

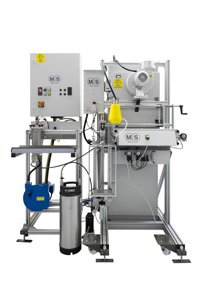

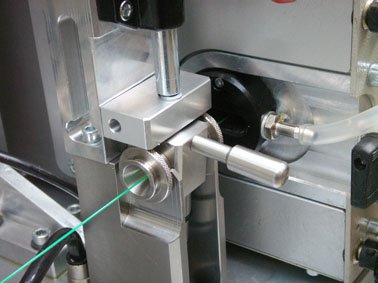

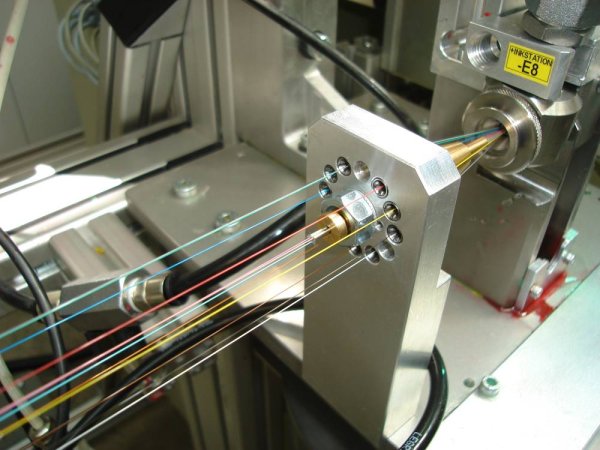

CCD1-KV ribbon processing UV curing unit, resin supply and ribbon processing head

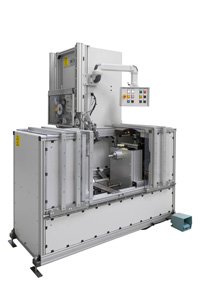

RCT-06 capstan and take-up unit - speeds up to 1000 m/min

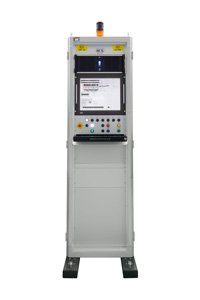

PCI1-L control cabinet CAN Network OLE-Server
