KSW

Indent marking or embossing of cables up to 30 mm in diameter immediately after the extruder head.

Indent marking or embossing
Single or double-sided marking
Line speeds up to 1000 m/min

Standard Configuration

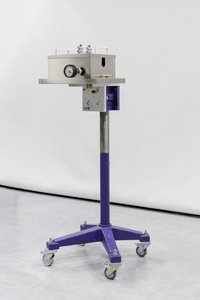

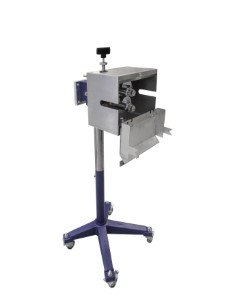

Frame with support column and crank-operated height adjustment mechanism.

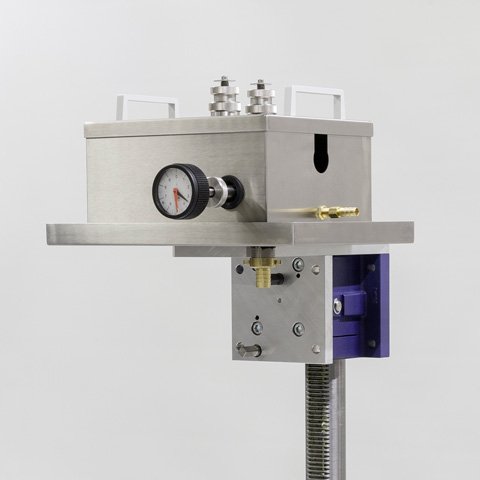

Marking head with cooling trough.

Marking wheels and guide rollers available separately.

Features

Marking machine for insulated cables. Indent marking or embossing.

Single or double-sided marking.

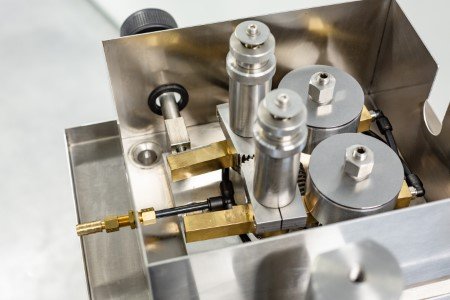

Marking wheels mounted on water-cooled shafts to prevent insulation from sticking to marking wheels and ensure perfect marking at extrusion line speeds of up to approx. 1000 m/ minute.

Height of each marking wheel adjustable separately.

Specifications

Max. printing speed:

1000 m/min

Product diameter:

1.5 mm to 30 mm

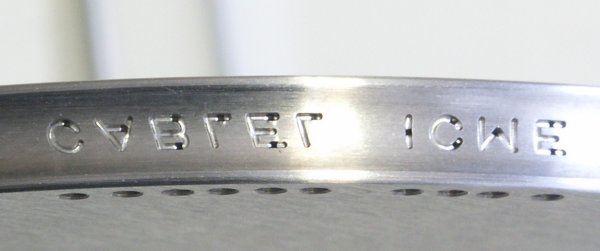

Marking wheels:

86 mm in diameter

Accessories

Marking wheels

Pressure rolls
